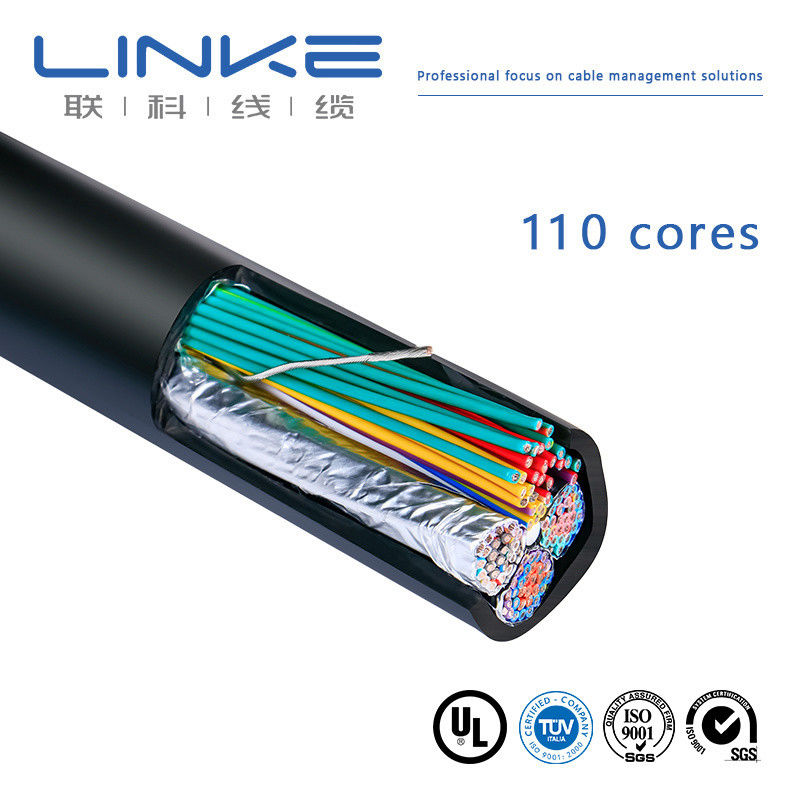

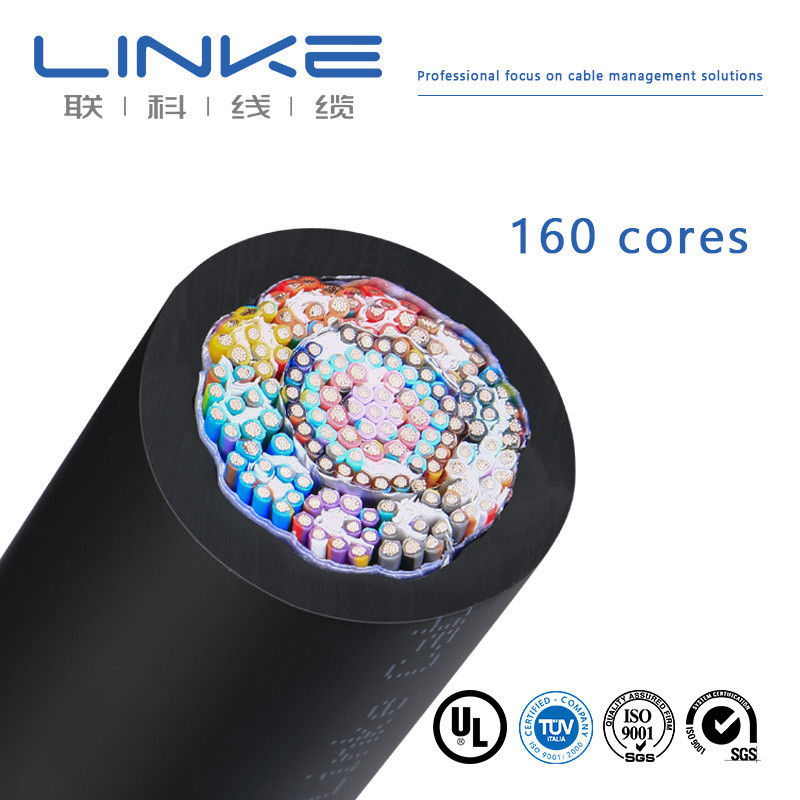

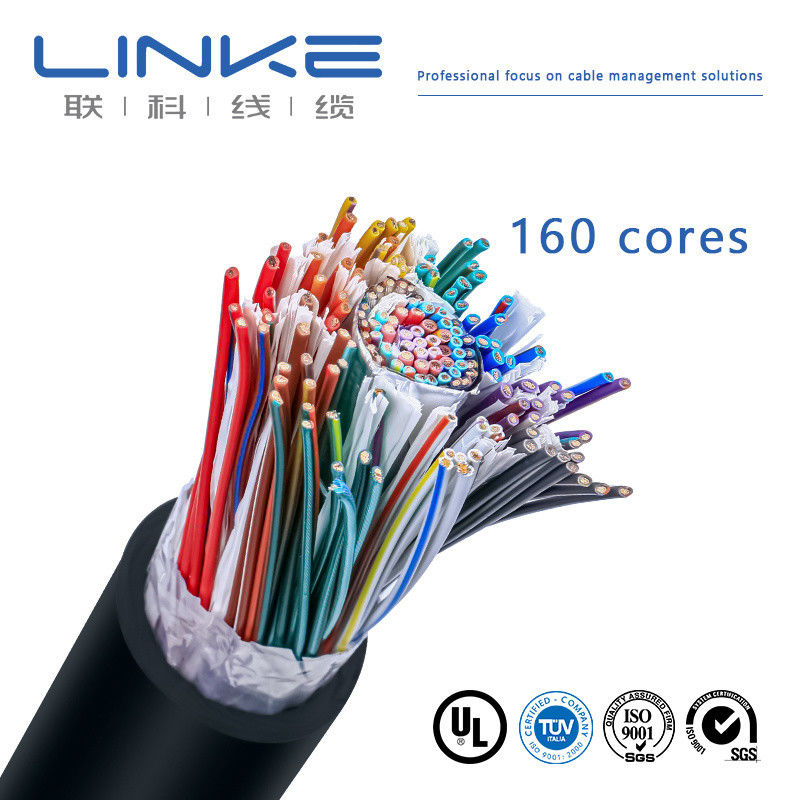

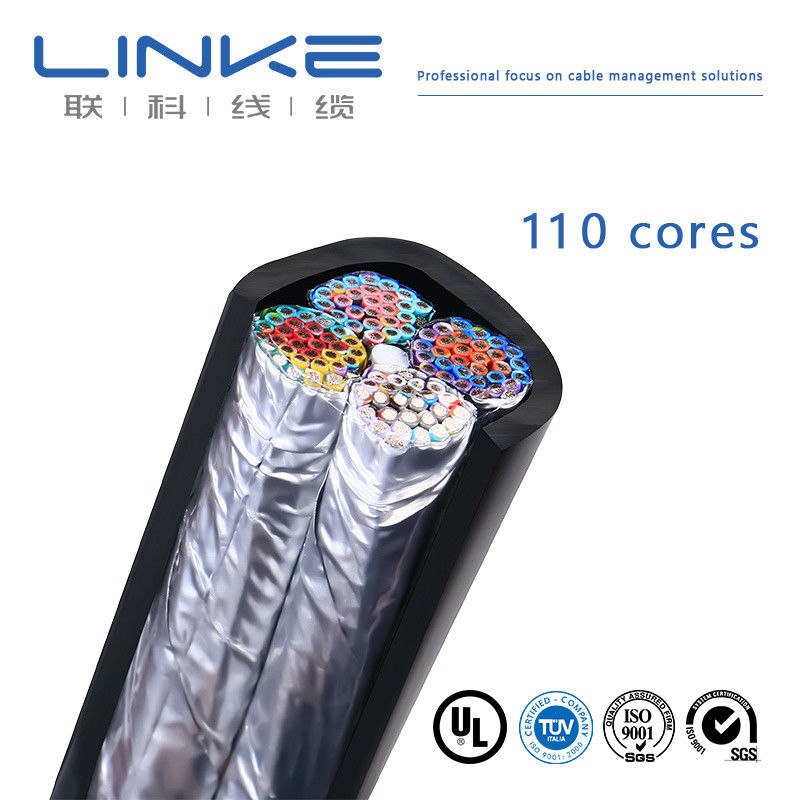

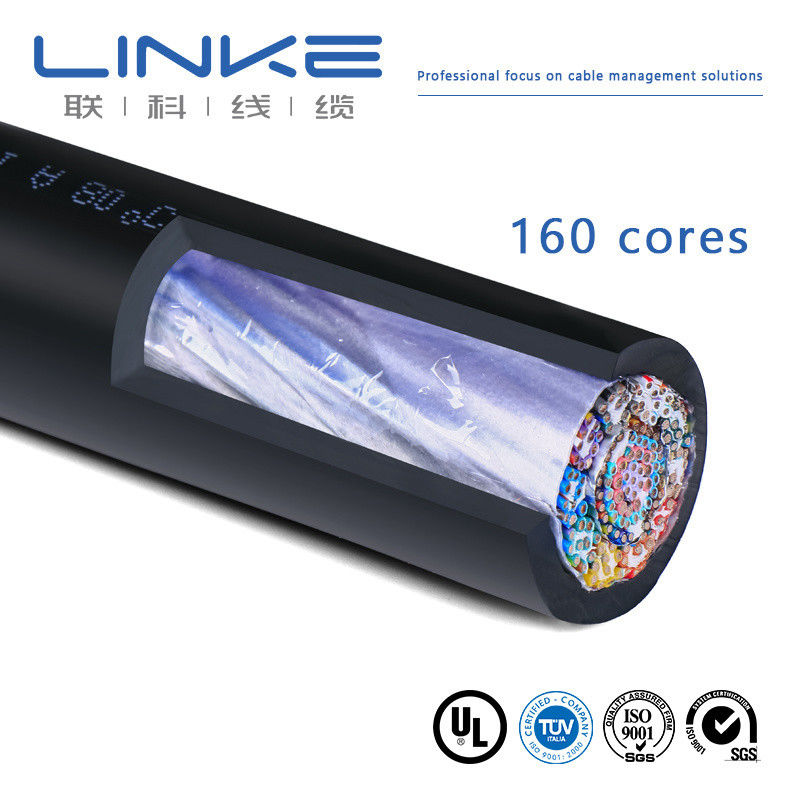

UL2464 Multi Core Power Cable 22 AWG with PVC Jacket Tinned Copper Conductor
Key Features
- Oil resistance and high flexibility
- Easy handling and installation
- Protection from direct light and weather resistance
- Multi-stranded fine wire conductor compliant with VDE 0295 and IEC 60288 Category 5
- Special PVC compound insulation and sheath
- Color-coded core wires conforming to VDE 0293 standards
UL2464 Single Layer Shielded Computer Cable
Rated temperature: 80°C | Rated voltage: 300 volts
- Conductors: Single or stranded bare copper or tinned copper wires
- Lead-free SR-PVC insulation
- Cores twisted and covered with aluminum foil Mylar tape
- Optional stranded tinned or bare copper ground wires
- Lead-free PVC coating and RoHS compliant
- UL VW-1 vertical flame resistance certified
- Complies with UL 758 and UL 1581 standards
Application
Internal or external wiring of general electronic and electrical equipment
Single Layer Shielded Cable Specifications
| P/N |
Conductor AWG |
Conductor Size |
No. of Cores |
Insulation Thickness |
Shield Material |
Jacket Thickness |
Overall Diameter |
| 2464-22-XXA |
22 |
17/0.160 |
2~7 |
0.23 mm |
Aluminum Mylar |
0.76 mm |
4.70~6.10 mm |
| 2464-20-XXA |
20 |
21/0.180 |
2~7 |
0.23 mm |
Aluminum Mylar |
0.76 mm |
5.10~6.70 mm |
Product name designation: A indicates aluminum foil Mylar with masking

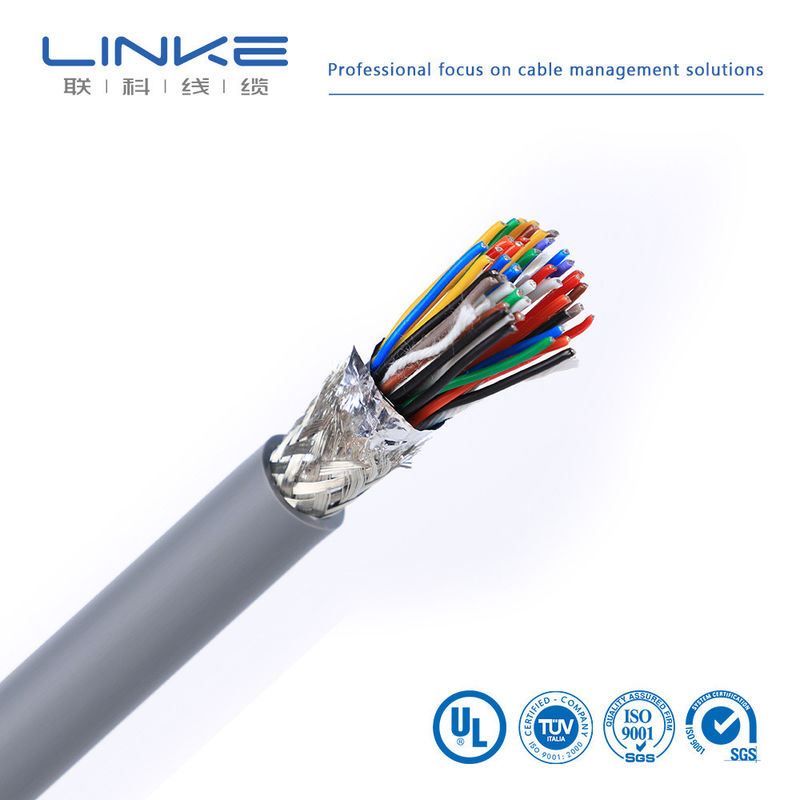

UL2464 Double-Layer Shielded Computer Cable
Rated temperature: 80°C | Rated voltage: 300 volts
- Conductors: Single or stranded bare copper or tinned copper wires
- Lead-free SR-PVC insulation
- Cores twisted and covered with aluminum foil Mylar tape
- Optional stranded tinned or bare copper ground wires
- Bare copper or tinned copper wire braiding with over 85% shielding rate
- Lead-free PVC coating and RoHS compliant
- UL VW-1 vertical flame resistance certified
- Complies with UL 758 and UL 1581 standards
Application
Internal or external wiring of general electronic and electrical equipment
Double-Layer Shielded Cable Specifications
| P/N |
Conductor AWG |
Conductor Size |
No. of Cores |
Insulation Thickness |
Shield Configuration |
Jacket Thickness |
Overall Diameter |
| 2464-22-XXAB |
22 |
17/0.160 |
2~7 |
0.23 mm |
16/6/0.12~24/8/0.12 |
0.76 mm |
5.20~6.60 mm |
| 2464-20-XXAB |
20 |
21/0.180 |
2~7 |
0.23 mm |
16/6/0.12~24/8/0.12 |
0.76 mm |
5.60~7.20 mm |
Product name designation: A indicates aluminum foil Mylar with masking, B indicates copper wire braiding masking
UL2464 Control Cable
Rated temperature: 80°C | Rated voltage: 300 volts
- Conductors: Single or stranded bare copper or tinned copper wires
- Lead-free PVC insulation
- Optional aluminum foil Mylar tape covering
- Optional stranded tinned or bare copper ground wires
- Optional bare copper or tinned copper wire braiding with over 85% shielding rate
- Lead-free PVC coating and RoHS compliant
- UL VW-1 vertical flame resistance certified
- Complies with UL 758 and UL 1581 standards
Application
Internal or external wiring of general electronic and electrical equipment
Control Cable Specifications
| P/N |
Conductor AWG |
Conductor Size |
No. of Cores |
Insulation Thickness |
Shield Configuration |
Jacket Thickness |
Overall Diameter |
| 2464-18-XX |
18 |
34/0.180 |
2~5 |
PVC 0.38 mm |
Optional |
0.76 mm |
6.20~9.00 mm |
Certifications and Standards
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587,
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001, ISO13485, TS16949
CNR - Appliance Wiring Material:
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.
