Home > Products > Silicone Rubber Cable >

300V 150°C Tinned Copper Silicone Rubber Wire for Electrical Appliances and Vehicle Wiring

150c Silicone Rubber Wire

Electrical Appliances Silicone Rubber Wire

300V Silicone Rubber Wire

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-C89

AMP:

1200A

Color:

Customized

Material:

Silicone

Conductor:

Tinned Copper

Voltage:

300V

Use:

Internal Wiring Of Vehicle

Certification:

RoHS, TUV, CE, ISO

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Core:

Multiple

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Package:

By Roll

Lead Time:

7-15days

Highlight:

150c Silicone Rubber Wire

Electrical Appliances Silicone Rubber Wire

300V Silicone Rubber Wire

Payment & Shipping Terms

Minimum Order Quantity

1000M

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

High Temperature Resistant Silicone Insulated Cable with Low Temperature Resistance and Customization Options

Get Best Price

Video

High-Temperature Resistant Silicone Rubber Cable with Tinned Copper Conductor and Customizable Insulation for Industrial Control

Get Best Price

Video

Flexible 18 AWG High Voltage 3kV Silicone Cable with Tinned Copper Wire for Industrial Applications

Get Best Price

Video

Custom Signal Wiring Harness with Flexible Bare Annealed Copper Wire and Wide Temperature Range for Automotive Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Product Overview

Silicone Rubber Wire 300V 150°C Tinned Copper for Electrical Appliances - High-quality wiring solution designed for demanding industrial applications with excellent temperature resistance and electrical performance.

Product Specifications

Product Range	Automotive wire harness, Appliance wire harness, Robot wire harness, Medical wire harness
Testing	Professional breakover and pulling force test before shipment
Cable Materials	Wire harness can be UL/CSA, CE certified with pure copper conductors
Customization	Cable color and length according to customer requirements
Insulation Materials	Rubber, Silicon, PE, and other specialized materials
Connector Types	Original OEM or replacement connectors and terminals
Applications	Automotive, Appliance equipment, Medical equipment, and industrial applications
Nominal Voltage	300V, 300/500V, 600V, 30V, 450/750V and other ratings
Temperature Range	-30°C to +200°C (various ranges available)

Technical Structure

Model	Conductor (mm²)	Structure (N/mm)	Conductor DIA (mm)	Material	Thickness (mm)	Insulation	Insulation OD (mm)	20°C Conductor Resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	Copper	0.6	Silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	Copper	0.7	Silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	Copper	0.8	Silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	Copper	0.8	Silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	Copper	1.00	Silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	Copper	1.10	Silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	Copper	1.3	Silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	Copper	1.3	Silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	Copper	1.50	Silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	Copper	1.50	Silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	Copper	1.50	Silicone	17.50±0.50	≤0.196

Product Images

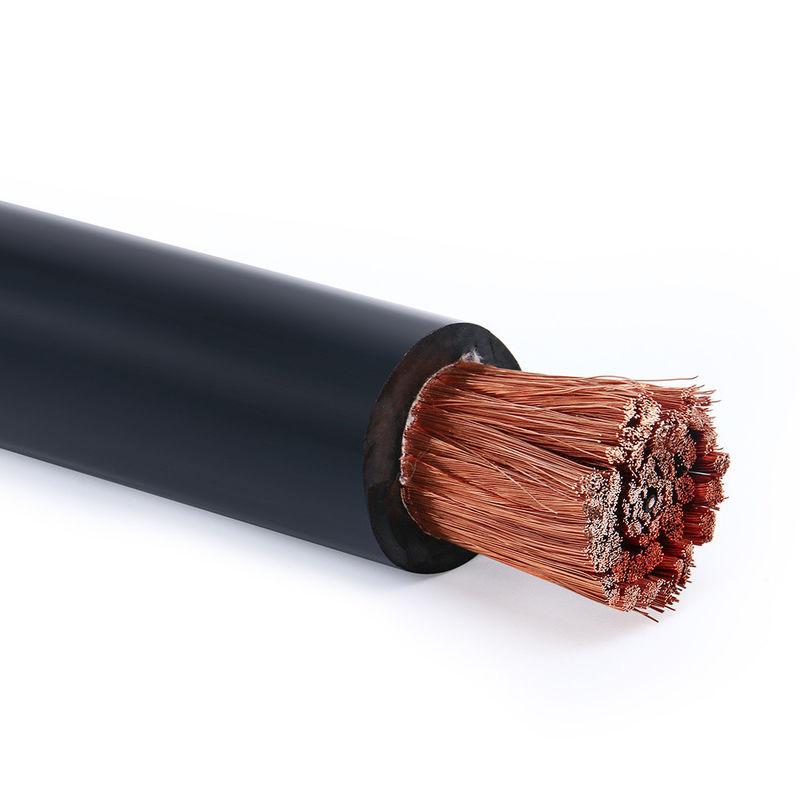

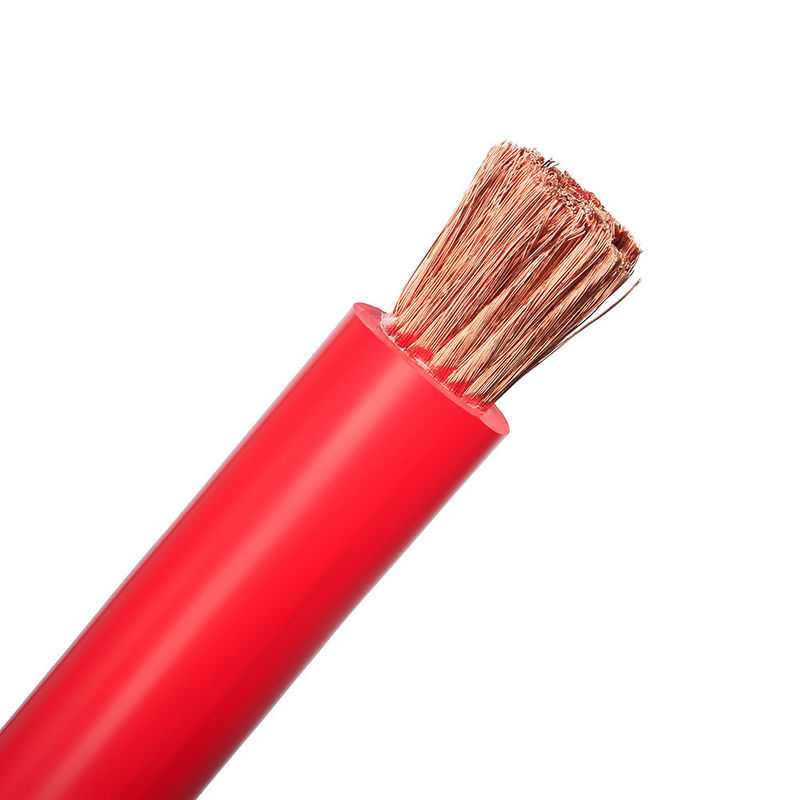

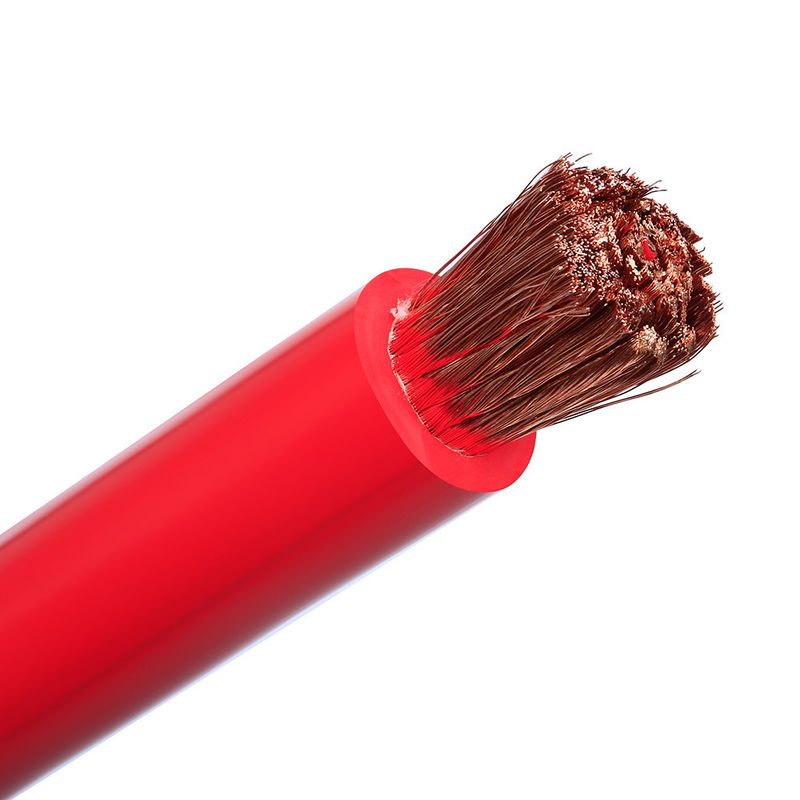

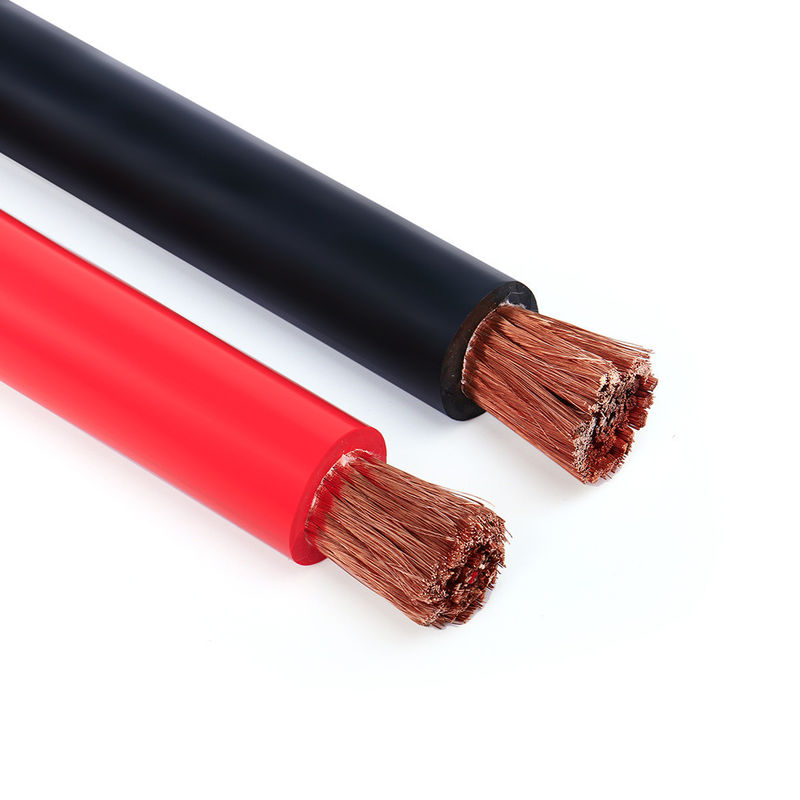

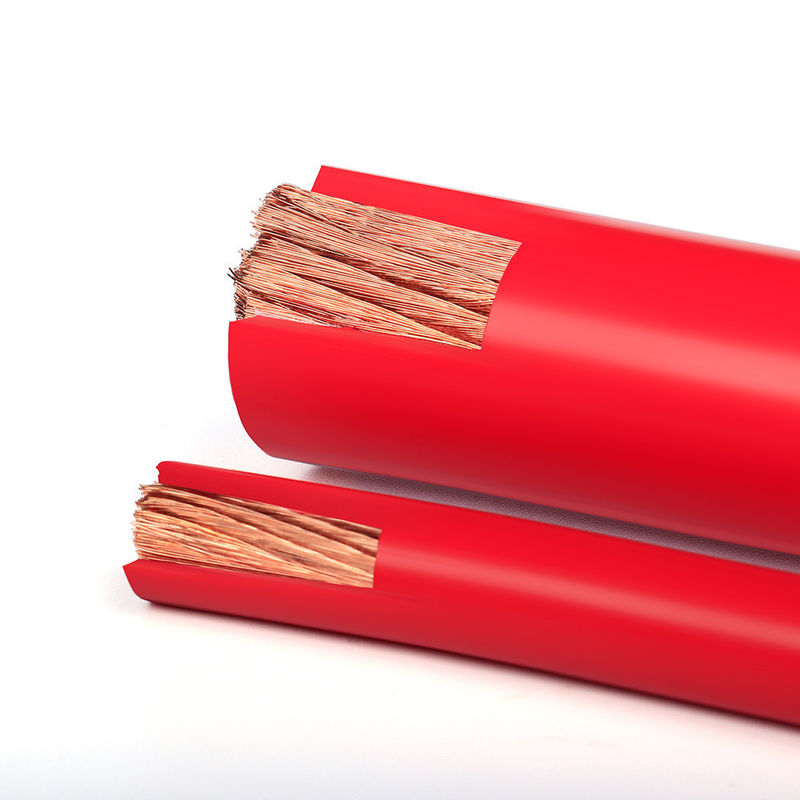

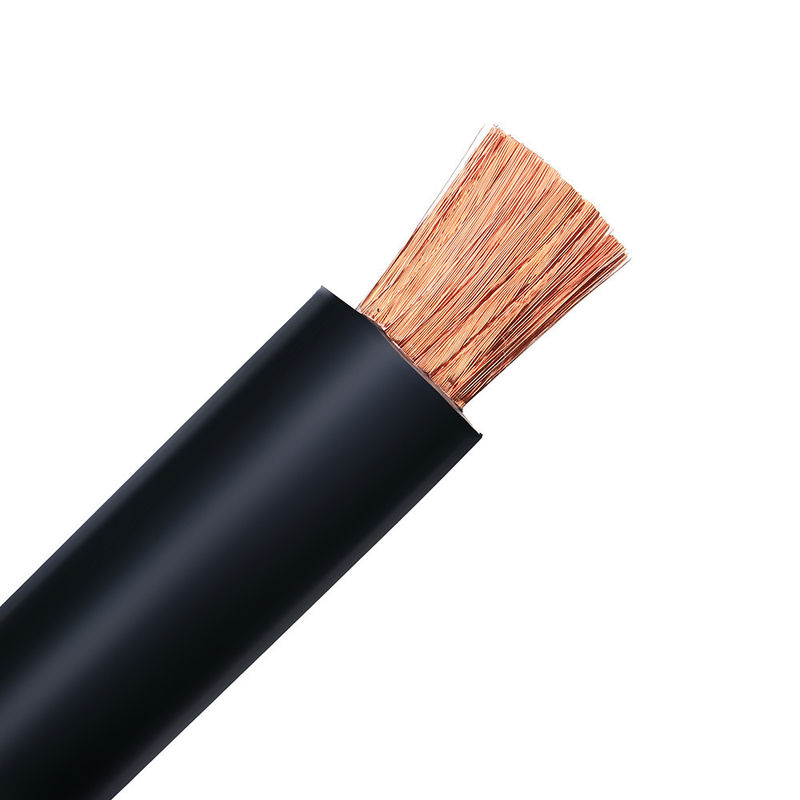

Silicone Rubber Wire 300V 150°C Tinned Copper Cable for Electrical Appliances

Silicone Rubber Wire 300V 150°C Tinned Copper Cable product application

Certifications & Standards

Our products meet the highest industry standards with comprehensive certifications including:

ISO9001 and ISO13485, TS16949 quality management systems
UL certifications: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 and many others
CNR - Appliance Wiring Material compliance
Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V

Ordering Information

Minimum Order Quantity	1000 PCS (small orders under 500pcs: 5-7 days lead time)
Lead Time	10-20 days (1000+ pcs: 7-15 days)
Samples	Samples confirmed first before mass production (free samples available)
Payment Methods	T/T, L/C, PayPal, Western Union
Services	OEM and ODM - Customization according to your requirements

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name and even customize the quality card to promote your company.
