Waterproof XLPE Insulated 1200A EV Charger Cable for High Voltage Electric Vehicle Charging

Customized Flame Retardant EV Power Cable

DC Multi Core EV Power Cable

750V AC EV Power Cable

Place of Origin:

China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

AMP:

1200A

Color:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Colour:

Customize

Type:

Insulated

Package:

By Roll

Core:

Multiple

Highlight:

Customized Flame Retardant EV Power Cable

DC Multi Core EV Power Cable

750V AC EV Power Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Electric Wire HV DC AC Electric Electrical Vehicle EV Charger Cable(32A 16A )

Get Best Price

Video

UL Certified EV Charger Cable with Tinned Copper Conductor and 300V Rated Voltage for Electric Vehicles

Get Best Price

Video

Automotive Industrial Wire Cable Harness OEM ODM Auto Molex Jst Connector Plug EV Charger Cable

Get Best Price

Video

1000V Customized Copper Conductor EV Charging Cable with Energy Liquid Cooled TPU Sheath

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

New Energy Vehicle Waterproof High-Voltage Electric Vehicle Cable

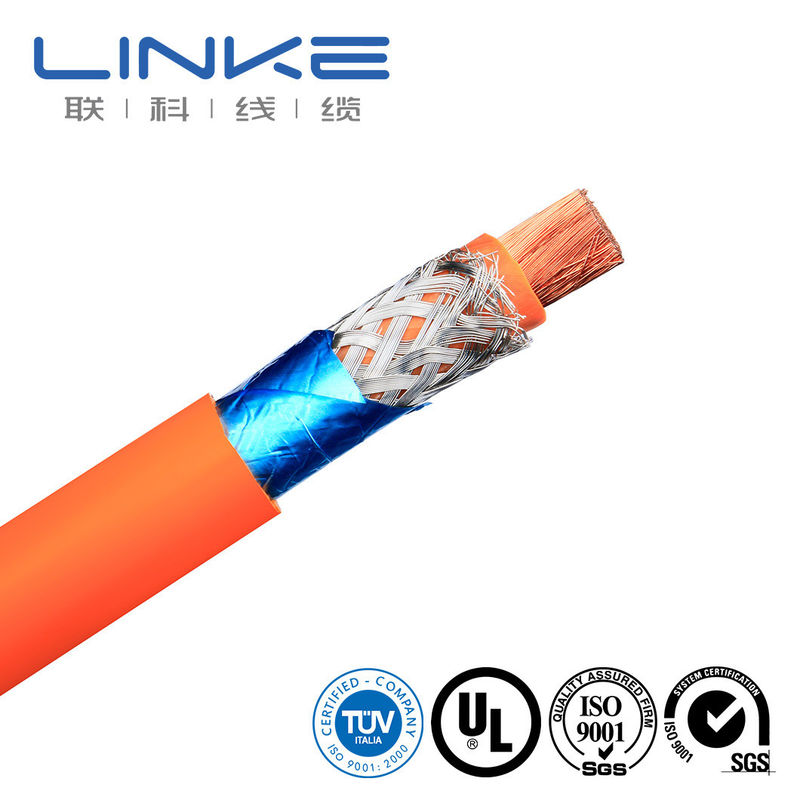

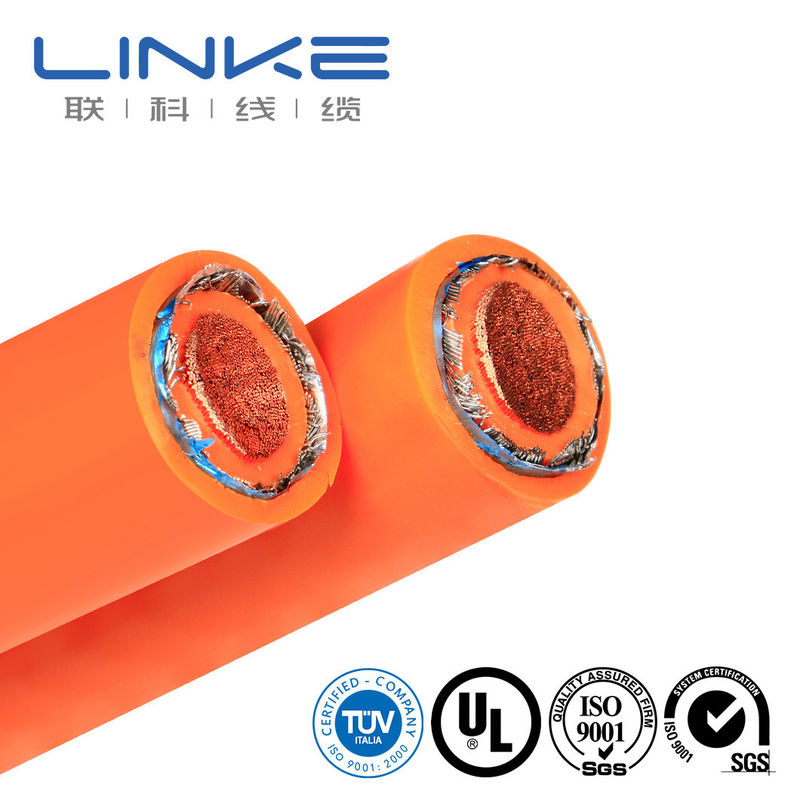

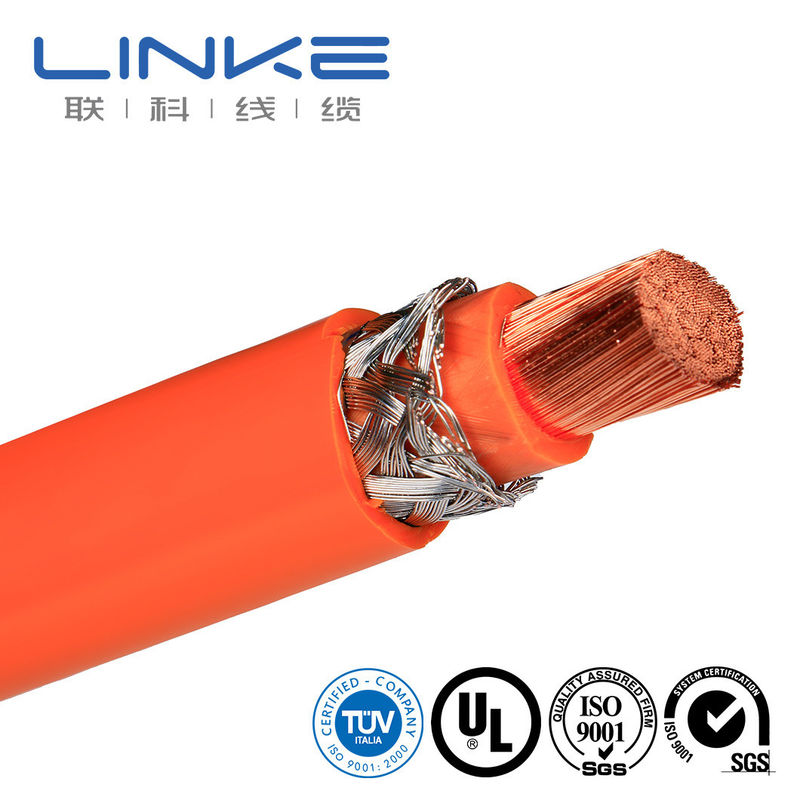

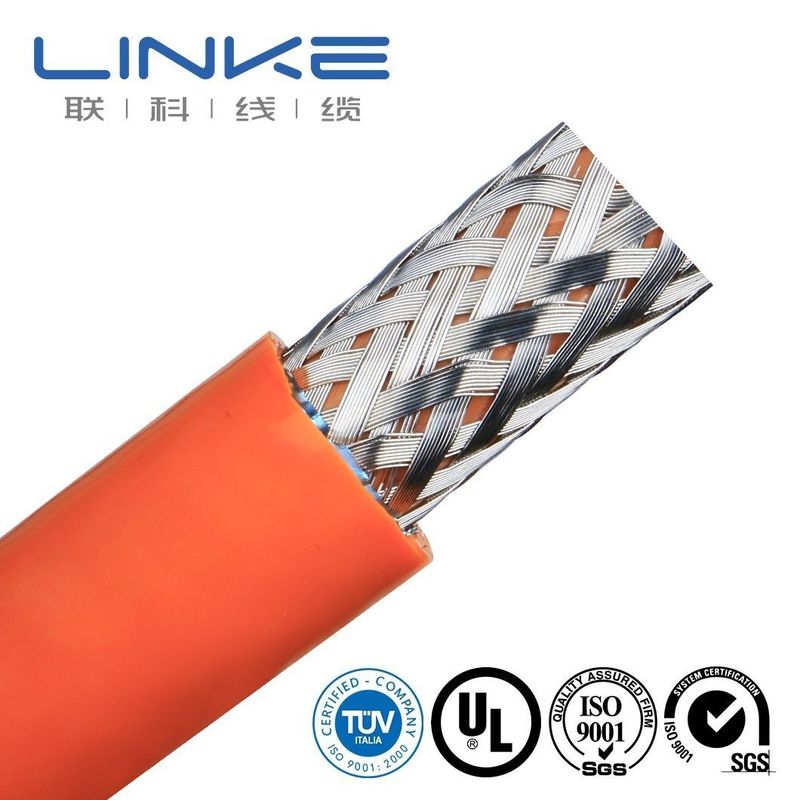

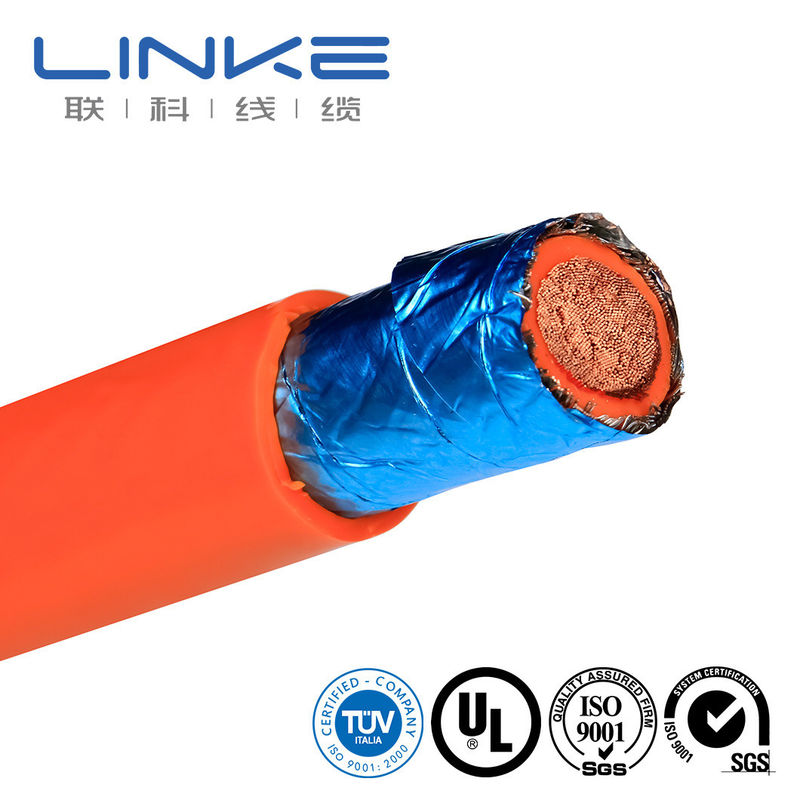

Available in 10mm², 16mm², and 25mm² sizes with shielded and unshielded XLPE insulated PVC cable options.

Product Overview

Product Range	Automotive wire harness, Appliance wire harness, Robot wire harness, Medical wire harness, etc.
Testing	Professional breakover and pulling force test before shipment
Cable Materials	Wire harness can be UL/CSA, CE certified and pure copper
Customization	Cable color and length according to customer requirements
Insulation Options	Rubber, Silica, PE, etc.
Connector & Terminal	Original OEM or Replacement
Applications	Automotive, Appliance equipment, Medical equipment, etc.
MOQ	1000 PCS
Samples	Samples confirmed first before mass production
Certifications	ISO9001-2015, IATF16949-2016, CE, RoHS, SGS, TUV
Lead Time	10-20 days (Small orders under 500pcs: 5-7 days, over 1000pcs: 7-15 days)
Services	OEM and ODM, customization according to your requirements
Nominal Voltage	300V, 300/500V, 600V, 30V, 450/750V, etc.
Temperature Range	-30°C to +80°C, -30°C to +90°C, -30°C to +105°C, -30°C to +70°C/90°C, 105/180°C, 200°C, etc.
Payment Methods	T/T, L/C, PayPal, Western Union

Cable Structure Specifications

Type	Conductor (mm²)	Structure (N/mm)	Conductor DIA (mm)	Material	Thickness (mm)	Insulation	Insulation OD (mm)	20°C Conductor Resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	Copper	0.6	Silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	Copper	0.7	Silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	Copper	0.8	Silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	Copper	0.8	Silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	Copper	1.00	Silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	Copper	1.10	Silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	Copper	1.3	Silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	Copper	1.3	Silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	Copper	1.50	Silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	Copper	1.50	Silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	Copper	1.50	Silicone	17.50±0.50	≤0.196

Key Features

Conductor: Flexible bare annealed copper wire
Insulation: Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C

Additional Specifications

Conductor: Flexible bare annealed copper wire
Insulation: Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C

Certifications & Standards

UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

5. Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
